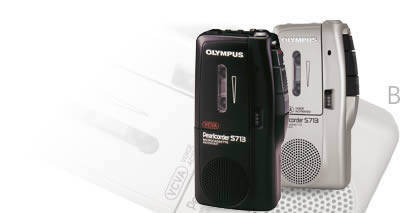

Olympus Pearlcorder S713

This microcassette recorder comes with voice activation so you can utilize it “hands-free” if desired. It also features fast play mode for playback that’s 25% faster, and external jacks for headphones, earphones, and AC power.



Features Package Contents
Key benefits
  • Variable control voice actuator for hands-free recording
  • Tape counter for easy location of previously-recorded passages
  • Dual tape speeds give you up to three hours of recording time on a 90-minute tape
  • Cue/Review makes for fast, easy message monitoring
  • Built-in microphone for recording anytime, anywhere
  • Built-in, dynamic speaker delivers crystal-clear sound
  • External jacks provide easy connection for earphone, microphone and external power
  • Quick review lets you listen to what has just been recorded
    Technical Data
  • Drive System Capstan drive
  • Tracks 2 tracks, 1 channel monophonic
  • Tape Speed 2.4 cm/ sec., 1.2 cm/ sec. switchable
  • Microphone Sensitivity Continuous adjustment using volume knob
  • Voice Activation Continuous adjustment using volume knob in the VCVE (Variable Control Voice Actuator) recording mode
  • Speaker 36 mm dynamic internal speaker
  • Overall Frequency Response 400 ~ 4,000Hz at 2.4 cm/ sec. 400 ~ 3,000Hz at 1.2 cm/ sec.
  • MIC Jack 2.5 mm diameter, impedance 2k ohms
  • Earphone Jack 2.5 mm diameter, impedance 8 ohms
  • Practical Max Output 150 mW at 2.4 cm/ sec.
  • Continuous Battery Duration Time Recording time 17 hours (when alkaline manganese dry cell batteries are used by the Olympus testing method)
  • Battery Two 1.5V AA batteries
  • External Power Supply A-321 AC Adapter
  • Dimensions 4.8 in. (L) x 1.0 in. (H) x 2.3 in. (W) / 121 mm (L) x 26 mm (H) x 58 mm (W) (excluding protrusions)
  • Weight 5.6 oz. / 160 g (including batteries)
    		• • Pearlcorder S713
    • Carrying Case
    • 2 x AA Batteries
    • 3 x XB60 tape
