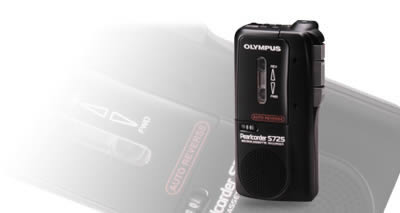

Feature-rich microcassette recorder with convenient Auto Reverse,
Voice Activation, fast play mode for playback that’s 25% faster,
an external jack for a microphone and an external Remote Control jack
so you can operate the S725 from a distance.
|
Key benefits
Auto reverse provides uninterrupted recording or playback on both sides
Tape counter helps locate important topics easily
Fast play mode allows 25% faster playback, to more quickly locate specific passages
Cue/Review makes for fast, easy message monitoring
Dual tape speeds give you up to three hours of recording time on a 90-minute tape
Auto shut-off feature conserves battery power
Quick review lets you listen to what has just been recorded
Built-in microphone for recording anytime, anywhere
Remote control jack for easy control of record, play, review and cue
Technical Data
Drive System Capstan drive
Tracks 2 tracks, 1 channel monophonic
Tape Speed 2.4 cm/ sec., 1.2 cm/ sec. switchable
Microphone Sensitivity Continuous adjustment using volume knob
Voice Activation Continuous adjustment using volume knob in the VCVE (Variable Control Voice Actuator) recording mode
Speaker 3.6 cm dynamic internal speaker
Overall Frequency Response 400 ~ 4,000Hz at 2.4 cm/ sec. 400 ~ 3,000Hz at 1.2 cm/ sec.
Remote Jack 2.5 mm diameter
MIC Jack 2.5 mm diameter, impedance 2k ohms
Earphone Jack 2.5 mm diameter, impedance 8 ohms
Practical Max Output 150 mW at 2.4 cm/ sec.
Continuous Battery Duration Time Recording time 17 hours (when alkaline manganese dry cell batteries are used by the Olympus testing method)
Power Source Rated voltage 3V DC
Battery Two 1.5V AA batteries
External Power Supply A-321 AC Adapter (optional)
Dimensions 4.8 in. (L) x 1.0 in. (H) x 2.3 in. (W) / 121 mm (L) x 26.7 mm (H) x 58.5 mm (W)
(excluding protrusions)
Weight 5.6 oz. / 160 g
(including batteries)
|
• Pearlcorder S830
• Instruction Manual
|
