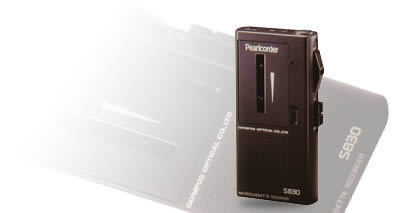

Olympus Pearlcorder S830

Effortless slide-switch lets you operate the S830 with ease so you can record, play, rewind, and stop in no time. With a built-in microphone for great sound. Dual tape speed. Automatic shut-off, and more.



Features Package Contents
Key benefits
  • Built-in microphone has conference or dictation sensitivity
  • LED indicator light confirms recording status
  • Dual tape speeds give you up to three hours of recording time on a 90-minute tape
  • Auto shut-off feature conserves battery power
  • Fast forward to more quickly locate specific passages
  • Tape counter helps locate important topics easily
  • Built-in, dynamic speaker delivers crystal-clear sound
  • Jacks provide easy connection
    Technical Data
  • Drive System Capstan
  • Tracks 2 tracks, 1 channel, monophonic
  • Tape Speed 2.4 cm/ sec., 1.2 cm/ sec.
  • Microphone Sensitivity Continuous adjustment using volume knob
  • Speaker '28 mm diameter dynamic speaker
  • Overall Frequency Response 300 ~ 4,000Hz (2.4 cm/ sec.)
  • MIC Jack 2.5 mm diameter, impedance 1.2k ohms
  • Earphone Jack 2.5 mm diameter, impedance 8 ohms
  • Practical Max Output 180 mW at 2.4 cm/ sec.
  • Continuous Battery Duration Time Recording time approx. 8.5 hours (alkaline manganese battery)
  • Power Source Rated voltage 3V DC
  • Battery Two 1.5V AAA batteries
  • External Power Supply A-319 AC Adapter
  • Dimensions 4.3 in. (L) x 0.7 in. (H) x 2.2 in. (W) / 110 mm (L) x 18.3 mm (H) x 56 mm (W)
  • Weight 4.9 oz. / 140 g (including batteries)
    		• • Pearlcorder S830
    • Carrying Case
    • 2 x AA Batteries
    • 1 x XD60 tape
