Key benefits
Single slide-switch control for play, stop, listen and review
Built-in microphone has conference or dictation sensitivity
Fast play mode allows 30% faster playback, to more quickly locate specific
passages
Tape-end alarm signals when to change or turn over Microcassette
Dual tape speeds give you up to three hours of recording time on a 90-minute
tape
Auto shut-off feature conserves battery power
Tape counter helps locate important topics easily
Jacks provide easy connection for earphone, microphone and external power
Technical Data
Drive System Capstan
Tracks 2 tracks, 1 channel, monophonic
Tape Speed 2.4 cm/ sec., 1.2 cm/ sec.
Microphone Sensitivity Continuous adjustment using volume knob
Voice Activation Continuous adjustment using volume knob in the VCVA recording
mode
Speaker 28 mm diameter dynamic speaker
Overall Frequency Response 300 ~ 4,000Hz (2.4 cm/ sec.)
MIC Jack 2.5 mm diameter, impedance 1.2k ohms
Earphone Jack 2.5 mm diameter, impedance 8 ohms
Practical Max Output 180 mW at 2.4 cm/ sec.
Continuous Battery Duration Time Recording time approx. 8.5 hours (alkaline
manganese battery)
Power Source Rated voltage 3V DC
Battery Two 1.5V AAA batteries
External Power Supply A-319 AC Adapter
Dimensions 4.3 in. (L) x 0.7 in. (H) x 2.2 in. (W) / 110 mm (L) x 18.3
mm (H) x 56 mm (W)
Weight 4.9 oz. / 140 g
(including batteries)
|

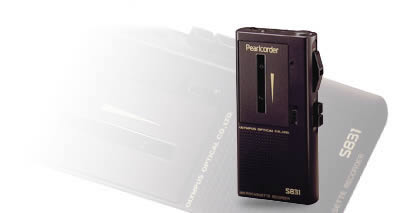

• Pearlcorder S831
• Instruction Manual
• Carrying Case
• 2 x AA Batteries
• 1 x XD60 tape |
